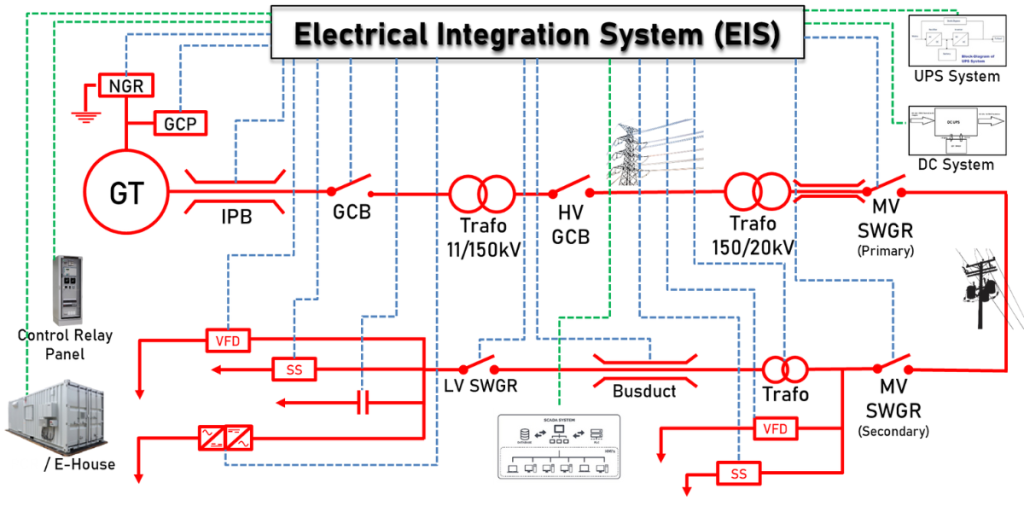

The Electrical Integration System (EIS) is a comprehensive system that connects power generation, transformers, switchgears, and distribution networks with control, protection, and monitoring systems. Power from the generator is transmitted through step-up and step-down transformers, then distributed to MV/LV switchgears with the support of busducts, VFDs, and static switches to ensure efficiency and reliability. The system is managed and monitored through Control Relay Panels, PCR/E-House, and SCADA, while UPS and DC systems provide continuous and uninterrupted operation.
